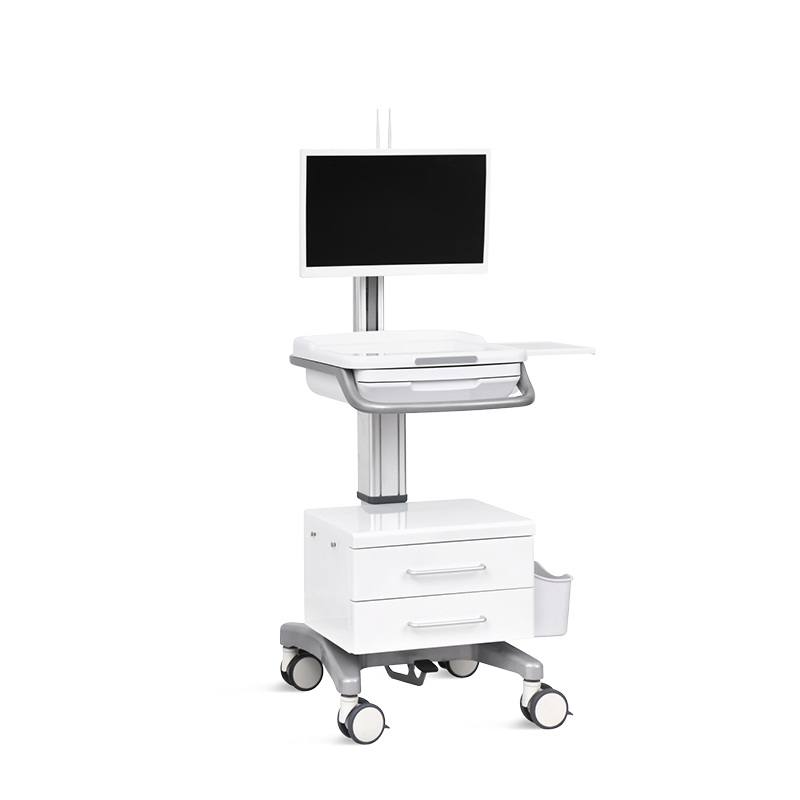

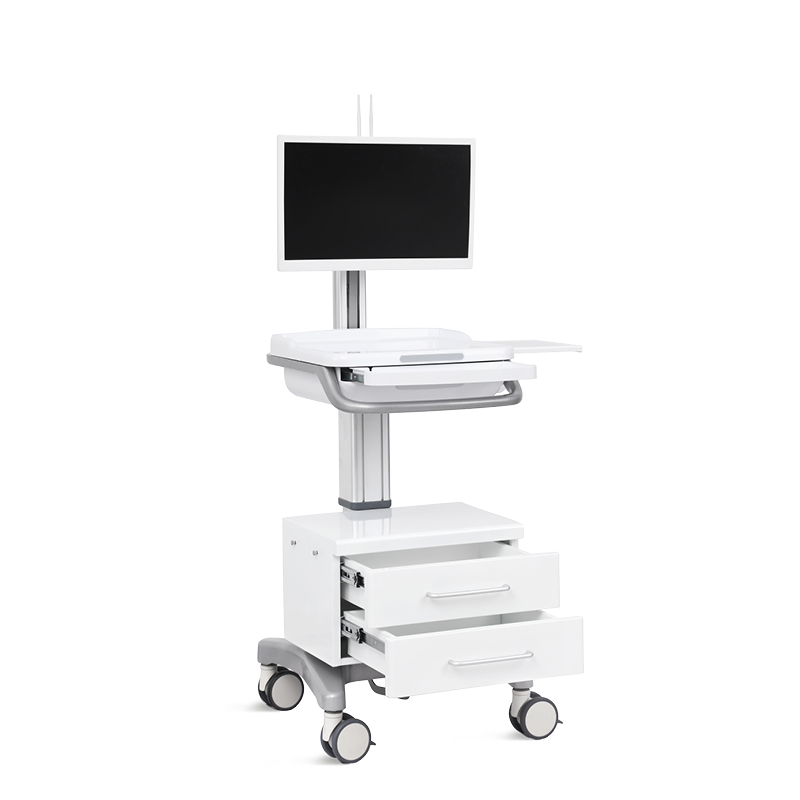

SKR-R02 Mobile Multi-function Information Search Cart

Short Description:

Send email to us Download as PDF

Product Detail

Features

Quality Control

Warranty

Download

Material

The table top is made of ABS medical grade plastic, the two-layer all-aluminum box is made of high-voltage electrostatic spraying process, and imported environmentally friendly antibacterial plastic powder is used to ensure that the product meets the medical and health requirements, and the surface is matte and non-dazzling. And equipped with an integrated die-casting aluminum handle and base, The column material is made of medical grade aviation aluminum alloy.

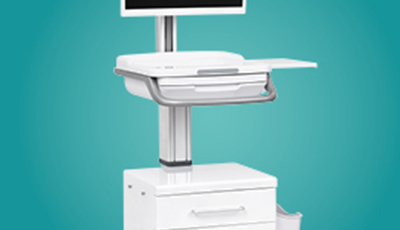

Upper Column

The detachable upper column can carry a monitor or an all-in-one computer up to 10kg, and the universal support function can complete 180° left and right rotation and 45° up and down inclination. The up and down travel of the column is as high as 15cm, with a constant force lifting adjustment for easy operation, and various equipment threading can be hidden in the column to make the appearance more refreshing.

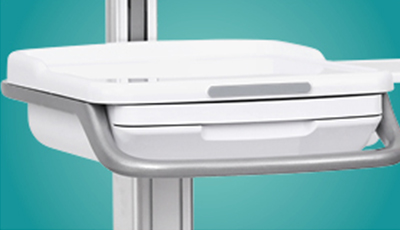

Table Top

The ABS medical-grade plastic countertop is easy to clean and anti-corrosion, without any spraying on the surface, which will not affect the medicine. The grooves are set around to prevent the dripping of medical liquid, and there is a countertop enclosure to prevent items from falling

Sub Table Top

The pull-out sub-table provides the area expansion of the desktop, which can be temporarily convenient for work.

Keyboard Drawer

Hidden keyboard drawer that can be stored inside the countertop when not in use.

Electromechanical Layer

The distance between the electromechanical layer and the medicine box is greater than 5cm, which facilitates the heat dissipation of the electromechanical equipment and protects the safety of medicines.

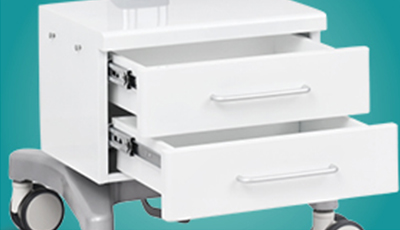

Drawer

Four-layer large space self-priming drawer, the inner layer of the drawer is equipped with a plastic insert board, which can be combined in any size to store medicines of different specifications.

Handle

The ring-shaped anti-collision handle, surrounded by solid metal handles with rounded corners, is located at the outermost periphery of the whole vehicle, which can not only injure other personnel in the event of a collision, but also protect the safety of the stroller.

Lower Column

The column is equipped with a professionally adjusted air rod, which is easy to rise and fall, and can be quickly adjusted to a suitable height, adapting to different sitting and standing postures, with a stroke of up to 20cm. And optional electric lifting system.

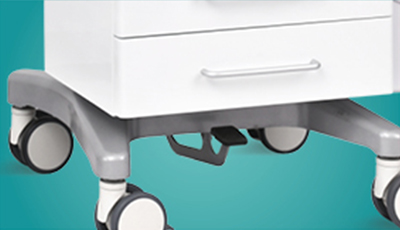

Chassis

All-metal stretched X-shaped chassis, one-time cast aluminum molding, to ensure the center of gravity and level of the vehicle.

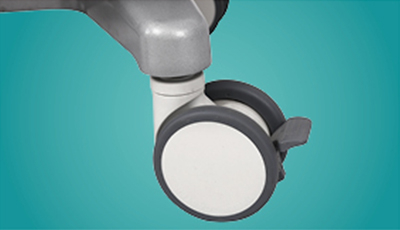

Casters

4-inch dual-wheel medical grade silent wheels, all with brakes, after tens of thousands of kilometers of long-term durability tests, flexible and durable.

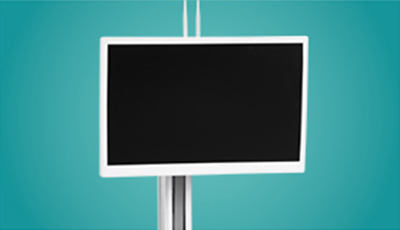

Monitor（optional）

Split computer: 21.5 inches or 23.8 inches All-in-one computer: 23.8 inches and above

Previous: SKR-R01 Information Nursing Cart

Next: SKR-R03 Laptop Cart

Technical Parameters

Dimensions	L×W×H 530×520×1200mm
Work table	L×W 440×460mm
Weight of the whole machine	45KG (without computer)
Sub-table size	L×W 330×220mm
Trolley lift stroke	200mm
Display lifting stroke	120mm
Caster design	4 inch medical grade silent wheel
Cabinet parameters	two layers
Drawer dimensions	480×335×290mm
Layer drawer inner size	390×290×60mm
The inner size of the drawer on the second floor	390×290×140mm

Optional Accessories

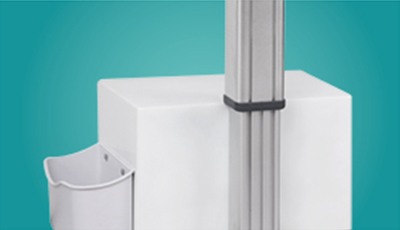

☐☐Hand sanitizer box

☐☐Mouse hanger

☐☐Sundries box

☐☐Trash can

We work on the continuous development and implementation of new standards for product quality and the efficiency of our service. As a result, we accumulate 126 registered technological patents and fulfill more than 20 quality certifications (ISO-9001/13485/14001/18001, European CE, FDA of the USA, Russian Federal Register, ANVISA of Brazil, etc.), in addition to the 93/42/EEC and IEC60601 safety standards. In all of this our R&D department is key, in which we invest 10% of our profits annually.

WARRANTY

* We provide a standard 1 year warranty, optional to be increased. 1% free parts of the total quantity will be provided together with goods.

* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.

FAQ

What quality requirements does your company meet?

* We have over 20 certifications, as ISO-9001/13485/14001/18001, European CE, North American FDA, Russian Federal Registration and Brazilian Health Regulatory Agency.

* We also meet the 93/42/EEC and IEC60601 safety standards.

* In addition to having 126 patents registered, we are constantly developing and implementing new standards for product quality and service efficiency.

What warranty do your products have?

* We provide a standard 1 year warranty, optional to be increased.

* 1% free parts of the total quantity will be provided together with goods.

* The product that is damaged or fails due to the manufacturing problem within one year after the purchasing date will gain free spare parts and assembling drawings from the company.

* Beyond the maintenance period, we will charge the accessories, but the technical service is still free.

What is your delivery time?

* Our standard delivery time is 28 days.

What payment options do you offer?

* We are flexible in terms of payment. We can do LC, TT, DP, even credit, after auditing the customer.

Do you offer OEM service?

* Yes, we have a qualified R&D team to carry out customized projects. You just need to provide us with your own specifications.

Do you have different motor options?

* Yes, we have different brands of motors, as Linak, Timotion, Dewert or Jiechang.

Is the color on headboard/footboard and ABS side rail optional?

* Yes, we can provide the color according to customers’ requirements, based on wholesale purchases.

Can I see your products personally?

* You are welcome to our 2,000 m2 of showrooms in our factory in China (150 km from Shanghai).

* In addition, we annually attend numerous international exhibitions where we present our products, such as Arab Health (United Arab Emirates), North Africa Health (Egypt), CMEF (Shanghai), German Medica (Germany), Medic West Africa (Nigeria), Medic East Africa (Kenya), Pharmedi (Vietnam), Hospitalar (Brazil), Medical Expo (Morocco), etc.
